The Acorn 180 Curved Stairlift is designed from the ground-up and can be installed into any type of curved staircase.
Technical DetailsFind out more
| Min | 0° |
| Max | 58° |
| 30 metres | 1181 inches |

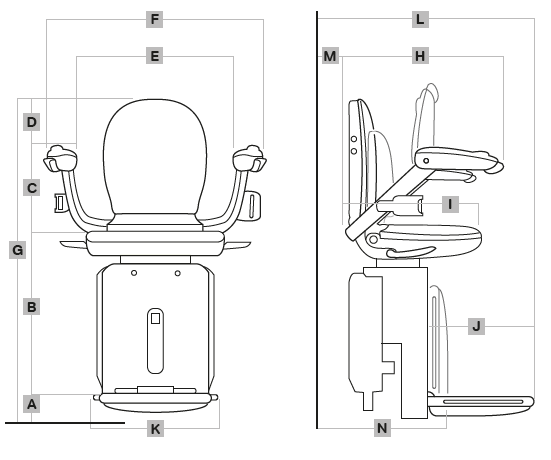

| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 50 | 2 |
| B | Top of footrest to top of seat | 485 | 19 |
| C | Top of seat to top of arms | 245 | 9.75 |
| D | Top of arms to top of seat back | 195 | 7.75 |
| E | Width between armrests | 480 | 19 |
| F | Overall width including seatbelt | 620 | 24.5 |
| G | Overall height | 975 | 38.25 |
| H | Length of arms from seat back | 460 | 18 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 360 | 14.25 |
| K | Width of footrest | 375 | 14.75 |
| L | Front of footrest to stringer | 640 | 25.25 |
| M | Back of seat to stringer | 35 | 1.5 |
| N | Folded width | 335 | 13.25 |
| O | Minimum width required to swivel at top | 690 | 27.25 |
| P | Distance from front of rail to stringer | 180 | 7 |
| Q | Height of leg | 125 (min) 650 (max) | 5 (min) 25.5 (max) |
| R | Front of drop nose to first stair | 450 | 17.75 |
This stairlift is independently tested to comply with:
| Specifications | |
|---|---|
| Motor output speed | No greater than 0.15 metres per second |
| Method of drive | Rack and Pinion |
| Motor Power | 0.375KW |
| Carriage Power Supply | 29.6v D2C batteries |
| Maximum capacity | 120kg |
| Power supply input range | 100-240v AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
